Network Mapper allows for gaining info on target system or network.

nmap scan

Task 1

Step 1 is to scan the “landscape” of what you are attacking, need to establish what services are running on the targets which is called port scanning.

Ports are necessary for making multiple network requests or having multiple services available. Every computer has a total of 65535 available ports; however, many of these are registered as standard ports

  • HTTP = port 80
  • HTTPS = port 443
  • Windows NETBIOS = port 139
  • SMB = port 445
  • these ports can be altered

MUST KNOW WHAT PORTS ARE OPEN in order for attack/ security.

Nmap tries to connect to all the ports and returns

  • open
  • closed
  • filtered (firewall)

Task 2

Once you know the ports that are open, you start enumerating which services are running on each port.

  • Question: What networking constructs are used to direct traffic to the right application on a server?

  • Question: How many of these are considered “well-known”? 1024 and not 1023.

Task 3

Nmap is installed in Kali Linux.

  • nmap -h to get help
  • man nmap to get the manual

Question: What is the first switch listed in the help menu for a ‘Syn Scan’ (more on this later!)?

  • look at SCAN TECHNIQUES, -sS TCP SYN scans

Question: Which switch would you use for a “UDP scan”?

  • look at SCAN TECHNIQUES, -sU UDP scans

Question: Nmap provides a switch to detect the version of the services running on the target. What is this switch?

  • look at OS DETECTION, -O enable OS detection

Question: Nmap provides a switch to detect the version of the services running on the target. What is this switch?

  • look at SERVICE/VERSION DETECTION, -sV probe open ports to see service version

Question: The default output provided by nmap often does not provide enough information for a pentester. How would you increase the verbosity?

  • look at OUTPUT, -v increase verbosity

Question: Verbosity level one is good, but verbosity level two is better! How would you set the verbosity level to two?

  • -vv

Question: We should always save the output of our scans – this means that we only need to run the scan once (reducing network traffic and thus chance of detection), and gives us a reference to use when writing reports for clients. What switch would you use to save the nmap results in three major formats?

  • OUTPUT, -oA output in 3 major formats at once

Question: What switch would you use to save the nmap results in a “normal” format?

  • OUTPUT, -oN output scan in normal format

Question: A very useful output format: how would you save results in a “grepable” format?

  • -oG

Question: This is a shorthand switch that activates service detection, operating system detection, a traceroute and common script scanning.

  • -A

Question: Nmap offers five levels of “timing” template. These are essentially used to increase the speed your scan runs at. Be careful though: higher speeds are noisier, and can incur errors! How would you set the timing template to level 5?

  • -T5 timing template

Question: We can also choose which port(s) to scan. How would you tell nmap to only scan port 80?

  • look at PORT SPECIFICATION, -p, -p 80

Question: How would you tell nmap to scan ports 1000-1500?

  • -p 1000-1500

Question: How would you tell nmap to scan all ports?

  • -p- instead of a number after the p

Question: How would you activate a script from the nmap scripting library?

  • -script

Question: How would you activate all of the scripts in the “vuln” category?

  • -script=vuln

Task 4

There are 3 basic scan types:

  • TCP connect scans -sT
  • SYN half open scans -sS
  • UDP scans -sU

Less common scans:

  • TCP null scans -sN
  • TCP FIN scans -sF
  • TCP Xmas scans -sX

ICMP “ping” scan

Task 5

Transmission Control Protocol (TCP) is a connection-oriented protocol requiring a TCP three-way-handshake to establish a connection.

The 3-way handshake (the SYN <–> SYN/ACK –> ACK ):

  1. The terminal sends TCP request to target server with SYN flag
  2. the server says that they got the packet with SYN/ACK flags
  3. the terminal ends handshake by sending TCP request with ACK flag

If Nmap sends a TCP request to a closed port, the port will reply with RST (reset) flag.

If a port is open but hidden behind a firewall, a TCP request is sent but nothing is sent back, it is then labelled filtered. You can get the firewall to reply with a RST flag.

  • iptables -I INPUT -p tcp --dport <port> -j REJECT --reject-with tcp-reset

Question: Which RFC defines the appropriate behaviour for the TCP protocol? hint: RFC 793 was deprecated and replaced

  • RFC 9293

Question: If a port is closed, which flag should the server send back to indicate this?

  • RST

Task 6

The SYN scans -sS are used to scan the TCP port range of a target, called “half open scans” or “stealth scans”. The SYN scans sends back a RST TCP packet after it gets a SYN/ACK flag from the server (SYN <-===-> SYN//ACK ==-> RST).

  • can be used for bypassing older intrusion detection systems looking for the 3-way handshake
  • often not logged as only port connects are logged
  • SYN scans are faster than TCP connect scans (avoiding 3-way handshake)
  • SYN require sudo permissions as they make new raw packets
  • unstable services can go down from SYN scans

The default Nmap scan is TCP, but SYN needs sudo.

  • SYN scans closed port, the server sends RST packet
  • SYN scans filteres port, the packet is dropped or spoofed with TCP reset

Question: There are two other names for a SYN scan, what are they?

  • half-open, stealth

Question: Can Nmap use a SYN scan without Sudo permissions (Y/N)?

  • n

Task 7

UDP scans are stateless, packets are sent and don’t care if they make it to the target. UDP scans -sU are faster but less quality, also are harder and slower to scan.

UDP scan sends packet to open port, there is no reply which is labelled as open or filtered (firewall). Rarely does UDP get a reply, but if it does it is labelled as open.

  • if UDP scan sends packet to closed port, it should get a ICMP (ping) packet with a message “port unreachable” = labelled closed
  • UDP scans take 20 minutes (very slow) to scan top 1000 ports
  • UDP scan: nmap -sU --top-ports 20 <target> scans the 20 most common UDP ports
  • if UDP scans a port used by a service, it will send a protocol payload instead of the usual empty UDP packets to get a reply

Question: If a UDP port doesn’t respond to an Nmap scan, what will it be marked as?

  • open|filtered

Question: When a UDP port is closed, by convention the target should send back a “port unreachable” message. Which protocol would it use to do so?

  • ICMP

Task 8

NULL, FIN and XMAS TCP port scans are less commonly used. All are used for stealthy use.

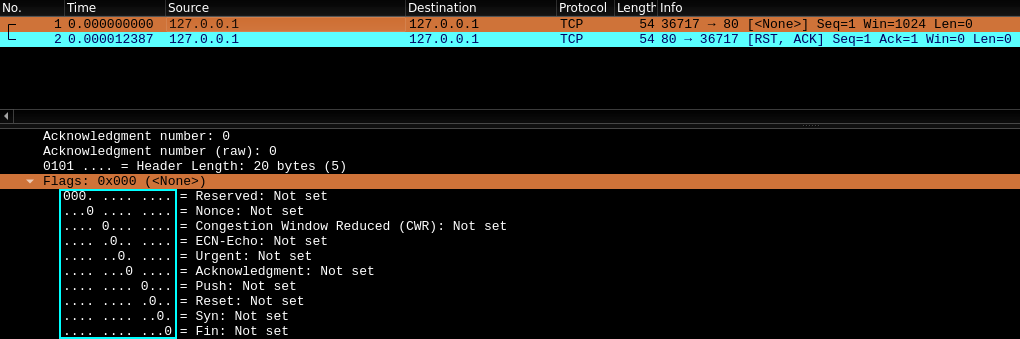

  • NULL: -sN TCP request is sent but no flags, this gets a RST reply if port is closed
  • FIN: -sF TCP request is sent with FIN flag, this gets a RST reply if port is closed
  • XMAS: -sX sends a malformed TCP packet and expects a RST reply for closed ports (christmas name as in Wireshark it looks like a christmas tree)

If the port is open then no reply to malformed packet (same for any firewall port).

  • NULL, FIN, XMAS can only label ports: open|filtered, closed, filtered (ICMP unreachable packet).

  • Many firewalls are configured to drop incoming TCP packets to blocked ports which have the SYN flag, sending requests without SYN flag == firewall bypass (not 100% effective).

Question: Which of the three shown scan types uses the URG flag?

  • XMAS

Question: Why are NULL, FIN and Xmas scans generally used?

  • firewall evasion

Question: Which common OS may respond to a NULL, FIN or Xmas scan with a RST for every port?

  • Microsoft Window

Task 9

When the target is a black box, you need to get a map of the network structure of which IP addresses have active hosts with a “ping sweep” (not always accurate).

  • ping sweep: -sn, nmap -sn 192.168.0.1-254 (CIDR notation) or nmap -sn 195.168.0.0/24
  • this tells nmap to not scan any ports but use pings to ID targets
    • sends TCP SYN packet to port 443 to target
    • sends TCP ACK (root user) or SYN packet to port 80 to target

Question: How would you perform a ping sweep on the 172.16.x.x network (Netmask: 255.255.0.0) using Nmap? (CIDR notation)

  • nmap -sn 172.16.0.0/16

Task 10

Nmap Scripting Engine (NSE) is writtenin Lua programming language. The NSE has various categories including:

  • safe which won’t affect the target
  • intrusive not safe, likely affecting target
  • vuln scans for vulnerabilities
  • exploit attempt to exploit a vulnerability
  • auth attempt to bypass auth for running services
  • brute attempt to bruteforce credentials for running services
  • discovery attempt to query running services for further info about the network

Question: What language are NSE scripts written in?

  • Lua

Question: Which category of scripts would be a very bad idea to run in a production environment?

  • intrusive

Task 11

Working with the NSE scripts inside nmap commands.

  • --script=vuln
  • --script=safe
  • --script=http-fileupload-exploiter you can dd more scripts with a comma
  • exploiting auth vulnerability --script-args http-put.url=" " , http-put=" "

Question: What optional argument can the ftp-anon.nse script take?

  • Reading the documentation and you compare the script arguments with what is required and get the answer of maxlist.

Task 12

Search for nmap scripts using the website and using Linux /usr/share/nmap/scripts.

  • to search for installed scripts /usr/share/nmap/scripts/script.db file, look at content head script.db
  • find scripts grep "ftp" /usr/share/nmap/scripts/script.db
  • or ls -l /usr/share/nmap/scripts/*ftp*

If you want a specific script you can download it

  • sudo wget -O /usr/share/nmap/scripts/<script-name>.nse https://svn.nmap.org/nmap/scripts/ <script-name> .nse

Question: Search for “smb” in the scripts. What is the filename of the script which determines the underlying OS of the SMB server?

  • smb-os-discovery.nse

Question: Read through this script. What does it depend on?

  • hint: look for dependencies in the Lua script
  • smb-brute

Task 13

There is a way to bypass firewall protection.

A Windows user will by default firewall block all ICMP packets. Using ping and nmap both use ICMP, this will label a target with firewall dead or not scan it. To avoid this use -Pn which does not ping the target host before scanning.

  • don’t ping, treat host as active and scan target

Some useful switches:

  • -f fragment the packets, less likely to be detected
  • --mtu <number> max transmission unit size for packets sent (multiple of 8)
  • --scan-delay <time>ms delay between sending packets
  • --badsum used to make invalid checksum for packets, used to see if there is a firewall

Question: Which simple (and frequently relied upon) protocol is often blocked, requiring the use of the -Pn switch?

  • ICMP

Question: Which Nmap switch allows you to append an arbitrary length of random data to the end of packets? Use the nmap -h.

  • --data-length

Task 14

Launch the attackbox and target IP address. Open the terminal.

  • type ping IP_address. no packets returned

Question: Perform an Xmas scan on the first 999 ports of the target – how many ports are shown to be open or filtered?

  • nmap -sX IP_address -p 0-999

Question: There is a reason given for this – what is it? Note: The answer will be in your scan results. Think carefully about which switches to use – and read the hint before asking for help!

  • hint: Run this command with the -vv switch enabled. It’s good practice to always increase the verbosity in your scans.

  • no response

Question: Perform a TCP SYN scan on the first 5000 ports of the target – how many ports are shown to be open?

  • nmap IP address -p 0-5000 -vv, 5 open

Question: Open Wireshark (Wireshark room) and and perform a TCP Connect scan against port 80 on the target, monitoring the results.

  • no answer needed
  • did not do

Question: Deploy the ftp-anon script against the box. Can Nmap login successfully to the FTP server on port 21? (Y/N)

  • nmap -sV -sC <target>, found FileZilla ftpd
